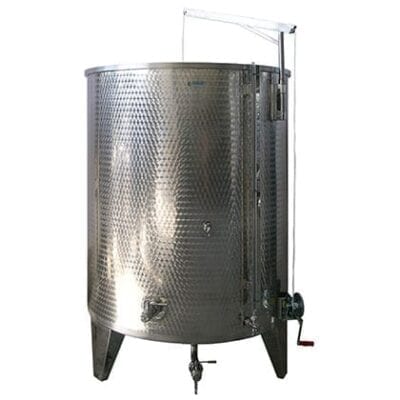

Variable capacity tanks with legs

The open tanks are suitable for the storage of wine and liquid foodstuffs (e.g. fruit juices, milk and oil). They are made of stainless steel W.No 1.4301 BA (AISI 304-V2A). The inner floating lid allows the volume to be adapted according to the clients needs. Wine-oxidation is prevented by tightening the floating lid by means of the inflatable gasket which is blown by the enclosed pressure pump and manometer.

Our standard production program involves open tanks with legs and without legs. The upper coat edge is additionally strengthened to assure greater tank stability. Larger open tanks with legs are equipped with a crane and pulley for easy floating lid lifting. Optionally, the tank can be equipped with an oval or rectangular manway (welded), with a cooling jacket or other accessories.

Material:
W.Nr. 1.4301 BA (AISI 304 – V2A)

Surface:
Outside marble finish, inside llld polished

Standard equipment:

3 feet
Bottom concentric (up to 200 lt flat bottom)
Drain port ball valve 5/4″-5/4″ (*up to 200 lt ½“ valve)
Racking port ball valve 5/4″-5/4″
Sampling valve DN20
Floating lid including pressure relief valve A10
Inflatable gasket including pump with manometer
Dust protection lid (up to 1000 lt)
Crane for floating lid (**from D1050 mm)
Level gauge DN20 (**from 1200 lt)

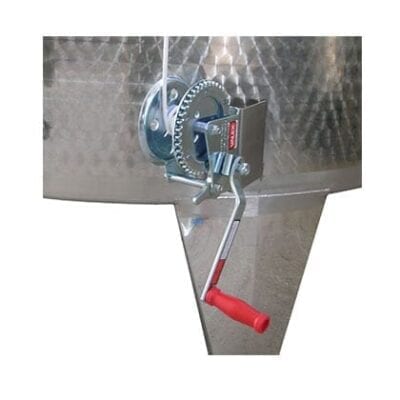

Pulley for floating lid ( *** from D1274 mm)

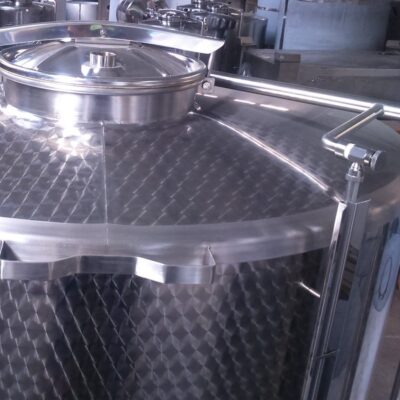

Closed storage tanks

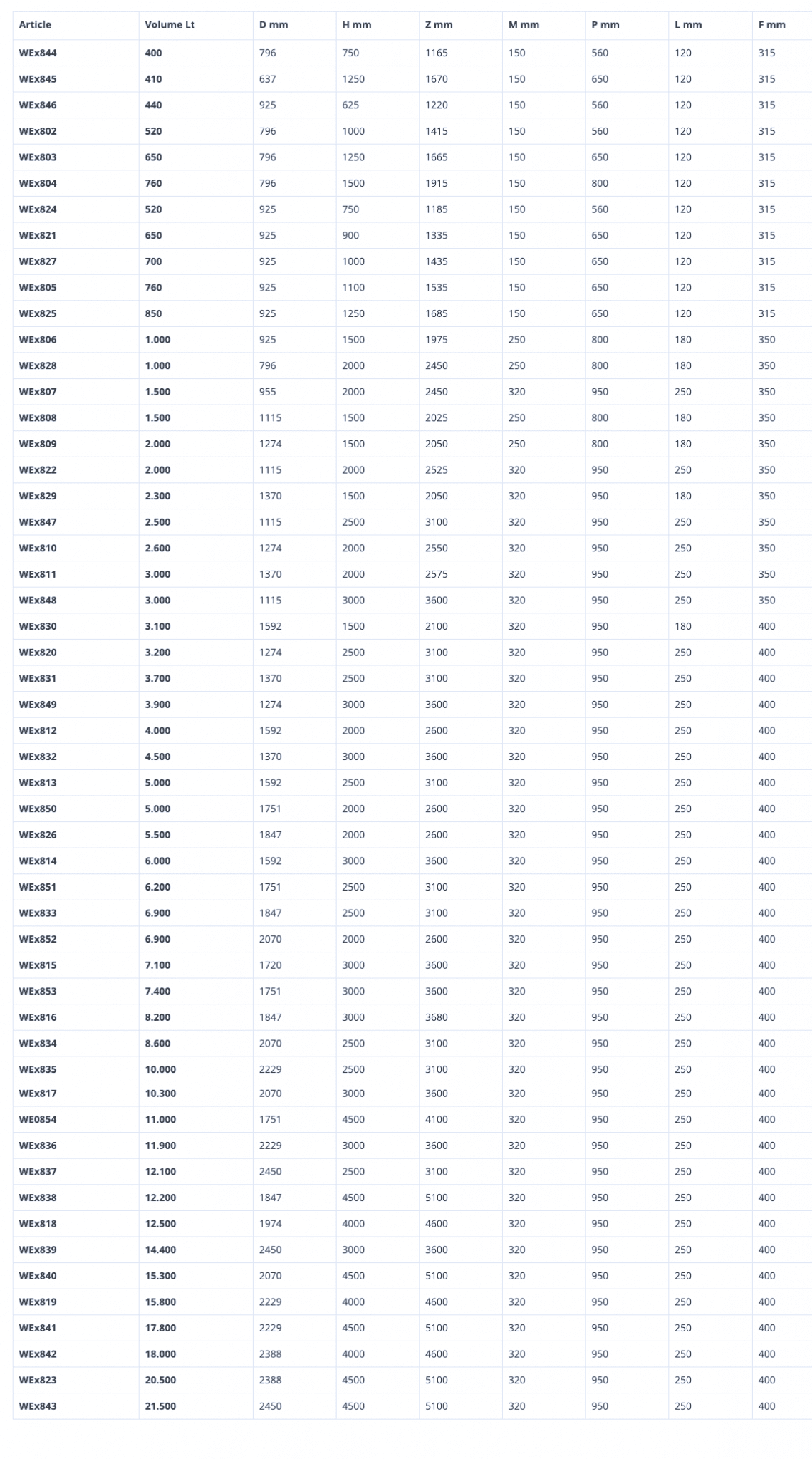

The closed round tanks are used for the storage of wine and liquid foodstuffs. They are made of stainless steel W.No. 1.4301 BA (AISI 304-V2A) and the tank cover is made of W.No. 1.4404 2B (AISI 316-V4A). Our offer includes a wide range of tank volumes, from 500 l up to 20.500 l. Optionally different dimensions (diameters and heights) are available. Customers may choose from among diverse additional equipment (e.g. cooling jacket, cooling plates, temperature control and regulation systems, different manway types).

Material:
W.Nr. 1.4301 BA (AISI 304 – V2A)

Cover:
W.Nr. 1.4401 2B (AISI 316 – V4A) IIIc

Surface:
Outside marble finish and inside llld polished

Standard equipment:

3 feet (4 feet as of D1720 mm)

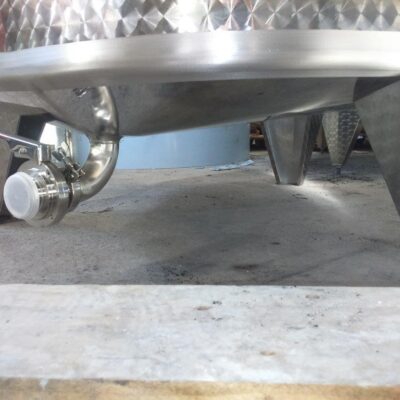

Drain port connection 5/4″ with ball valve 5/4″-5/4″ and cap
Racking port connection 5/4″ with ball valve 5/4″-5/4″ and cap
Sampling valve DN20
Connection ½ “ with cap
Level gauge DN20
Top inlet DN50 with pressure relief valve
Oval manway Jaklič – pressed frame 440 x3 20mm (D925 – D1370 mm)
Oval manway Jaklič – welded frame 440 x 310 mm (from D1592 mm)
Oval manway door 440x320mm inwards opening (D796 – vertical welded)
Ladder hook (from 1.000 lt)
Crane hooks (from 2.000 lt)
