Filling
Description:

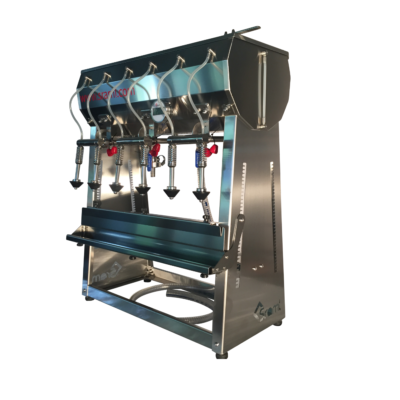

With a number of upgrades to suit your liquid product bottling and packaging style, the SRAML PS Eco and Standard line of manual bottle filling machines combines the simplicity of design and use with many features and addons for the ultimate performance.
OPTIONS:
PSe series

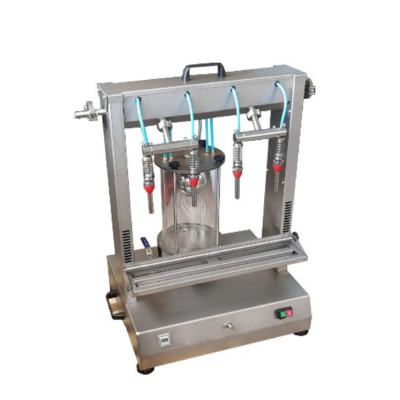

• Compact, tabletop machine.
• Product buffer tank with mechanical float valve.
PSe series

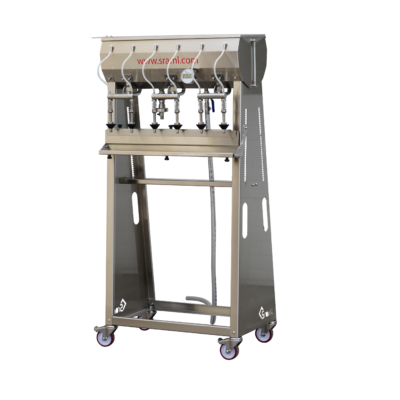

• Self-standing machine on pivoting wheels.
• Product buffer tank with integrated electrical product level sensor.
• Product level indication on sides.
FEATURES:
• Bottle nozzles — inert gas injection, 2 nozzles
• Dummy bottle, centralised valve washing nozzle
• Bottle neck supports for plastic bottles
• Integrated product feeding pump, automatic feeding by level sensor in the filler tank
Features
-
- Stainless steel construction.
- Set of gravity filling nozzles with adjustable filling level.
- Bottle rest with adjustments for different bottle sizes.
- Product inlet ball valve 1/2” with connection.
- Product drain ball valve 1/2”
- Product temperature indicator.
- Max bottle diameter: 140mm.
- Filling valve diameter: 15 mm.
